1000V AC/DC Multimeter w/Bar Graph

The IDEAL® Digital Multimeter (model 61-357) is designed for professionals who demand precision and reliability. Rated CAT IV 600V and CAT III 1000V, this auto-ranging, TRMS digital multimeter handles up to 10 Amps AC and DC current via the test leads in series with the load. It measures up to 1000V AC/DC, Lo Z (Low Impedance AC Voltage) to reduce the possibility of false readings due to ghost voltages, AC V, frequency, resistance up to 60MΩ, continuity, capacitance, and diodes, and even includes a K-Type thermocouple for temperature readings in both Fahrenheit and Celsius. Equipped with a non-contact voltage sensor, it detects voltage between 40V and 600V, ensuring safety and efficiency. The display offers both digital readouts and an analogue bar graph, with a backlight for visibility in any environment. Audible tones and a red LED alert you to voltage above 30 volts, continuity, and NCV detection. For added convenience, the meter features two probe storage points and built-in holders, allowing for easy, one-handed operation. The hang strap mount lets you suspend the meter from various surfaces (Universal Magnetic Hanging Strap model UMHS-757 sold separately), while industrial-grade over-moulding provides enhanced grip and 2 m drop protection. Additional features include HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. The meter comes with three 1.5V AAA batteries and a fully accessible storage pouch with a belt loop, perfect for storing the meter, probes, and thermocouple. This is the ultimate tool for professionals who need a reliable, versatile, and easy-to-use multimeter.

• UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bar graph on Display
• Provides True RMS AC voltage and current for accurate measurements on non-linear signals
• Measures AC/DC current, AC/DC voltage, Lo Z, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
• Combined LCD digital readout and analogue bar graph display
• LEAD position warning and open FUSE indication

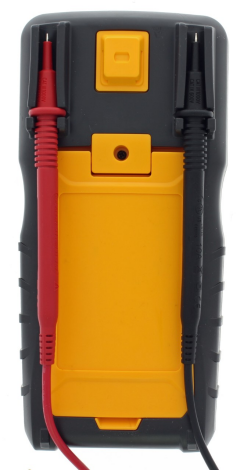

• Built-in probe tip holder and hanging strap clip allows safer, easier measurement (Universal Magnetic Hanging Strap model UMHS-757 sold separately)
• Large easy to read l backlit display, allows for safer/faster work in poorly lit environments
• Industrial design of removeable rubber boot enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop

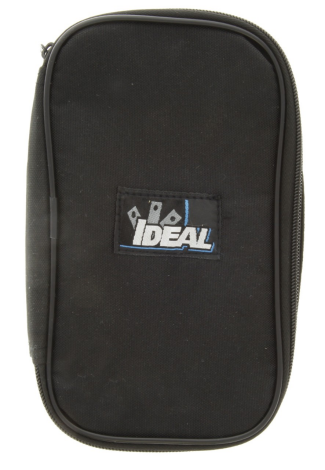

• Includes soft case, test leads, batteries, and K-Type Thermocouple
