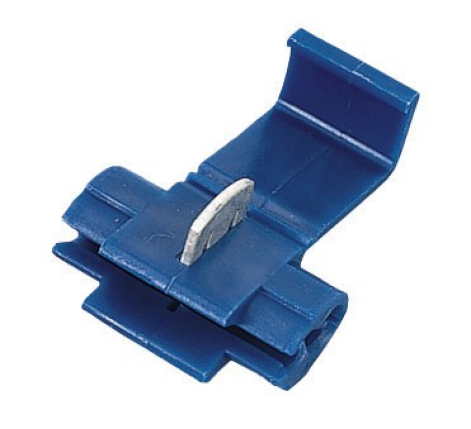

Tap Splice 16-14 AWG (25/BX)
Product Description
IDEAL® crimp terminals and disconnects are designed for durability and ease of use. Color-coded for easy identification, they feature butted seam-construction that prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Made of tin-plated brass for corrosion resistance, their shouldered barrel insulation quickly positions terminal for proper crimping. Expanded insulation entry accommodates a wide variety of insulation diameters and provides
additional insulation support.
SKU
83-3271
IDEAL® crimp terminals and disconnects are designed for durability and ease of use. Color-coded for easy identification, they feature butted seam-construction that prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Made of tin-plated brass for corrosion resistance, their shouldered barrel insulation quickly positions terminal for proper crimping. Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support.
- Butted seam-construction prevents splitting under maximum pressure
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
- Shouldered barrel insulation quickly positions terminal for proper crimping
- Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
| Gender | N/A |
| Termination Method | IDC |
| Length | 1,000' |
| Quantity | Pack of 25 |
| Number of Ports | 2 |
| Maximum Rated Voltage | 600V |
| Maximum Temperature (C) | 75°C |
| Maximum Wire Gauge | 16 AWG |
| Minimum Wire Gauge | 14 AWG |
| Number of Poles | 2 |
| Stud Size | N/A |
| Stud Size (metric) | 5.3 mm |
| Terminal Type | Tap |
| Termination Method | Crimp |
| Wire Type | Solid, Stranded |
| Warranty | Limited 1 Year |
| Colour | Blue |
| Returnable Indicator | Yes |
| RoHS Compliant | Yes |
| VOC Content | No |
