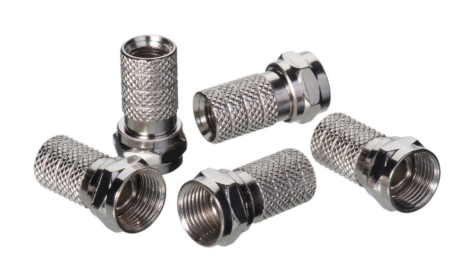

RG-59 F Hex Crimp Connector -10 pk

• Connector Model : 59FCR
• Accepts: RG-59 coax cables
• Designed for use in indoor video applications
• Hex crimp cable retention requires .320” hex crimp
• Industry standard ¼” x ¼” cable preparation

Nickel plated brass crimp sleeve connectors designed for indoor coax terminations for standard video and other RF applications. Connectors require crimping with a hex crimp tool to secure the connector to the cable. For outdoor or high performance F connectors see the RTQ™ series of compression connectors.

• Connector Model: 59FCR
• Accepts RG-59 coax cables
• Designed for use in indoor video applications
• Hex crimp cable retention requires .320” hex crimp
• Industry standard ¼” x ¼” cable preparation
• Center conductor range: All
• Dielectric diameter range: .142” - .148”
• Outer jacket diameter range: .230” - .250”
• Recommended cable prep/stripping tools: 45-605 PrepPRO™; 45-526
• Recommended crimp tools: 30-503 Crimpmaster™ (30-582 dieset); 30-433
• Nickel plated brass bodies
• Designed for 75Ω coaxial cables
• 7/16” nut diameter with 3/8-32 thread

• To use the connector:

• 1) Prepare RG-59 coax with a ¼” x ¼” strip, and fold back the braiding.
• 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
• 3) Place connector in IDEAL crimp tool with .320” hex and terminate. Crimp only the back sleeve portion of the connector – not the nut or shoulder area of connector.
• 4) Attach connector to device.
