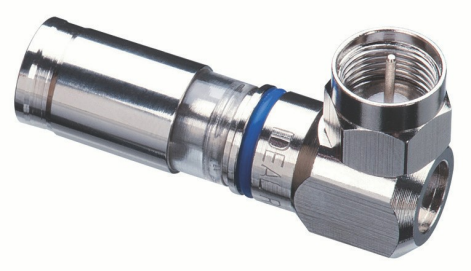

InSITE™ RTQ™ 90°RG-6 F Compression Connector -5 pk
Product Description
The IDEAL® XR™ F-connector provides a versatile solution for a wide range of coax types, including plenum. The XR can terminate regular (dual), tri, and quad shielded cables with a single connector. Constructed with an all-brass exterior and an dual inner O-rings, these connectors ensure a robust, weatherproof connection suitable for both indoor and outdoor applications. A wide range of applications from 5MHz to 3GHz, including CATV, satellite, HDTV, and other A/V installations are supported. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and enhances cable retention.
SKU
92-691
The IDEAL® XR™ F-connector provides a versatile solution for a wide range of coax types, including plenum. The XR can terminate regular (dual), tri, and quad shielded cables with a single connector. Constructed with an all-brass exterior and an dual inner O-rings, these connectors ensure a robust, weatherproof connection suitable for both indoor and outdoor applications. A wide range of applications from 5MHz to 3GHz, including CATV, satellite, HDTV, and other A/V installations are supported. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and enhances cable retention.
- Features InSITE™ window - no measuring, no jacket marking, no guesswork – a confident connection every time
- RTQ™ design allows compatibility with most regular, Tri, and Quad shield cables.
- Compatible with RG6/RG6 Quad/RG6 Plenum/RG6 Quad Plenum coax cables
- Center conductor range: 23-18 AWG Solid (.023” - .040”)
- Dielectric diameter range: .168” - .183”
- Outer jacket diameter range: .226” - .305”
- Industry standard ¼” x ¼” coax preparation
- Strip coax with IDEAL® PrepPRO® cable stripper (45-605)
- Compress with IDEAL® OmniSeal™ PRO XL (30-793) or Linear X® 3 (33-632) compression tool
- Pack of 5 connectors
| Cable Composition | Coax |
| Cable Type | RG6, RG6 Quad, RG6 Plenum, RG6 Quad Plenum |
| Gender | Male |
| Termination Method | Compression |
| Length | 1,000' |
| Quantity | Pack of 5 |
| Minimum Solid Wire Size | 23 AWG |
| Positions/Contacts | N/A |
| Wire Type | Solid |
| Warranty | Limited 1 Year |
| Impedance | 75 |
| Colour | Gray |
| Feed-Thru | No |
| Returnable Indicator | Yes |
| RoHS Compliant | Yes |
| VOC Content | No |
