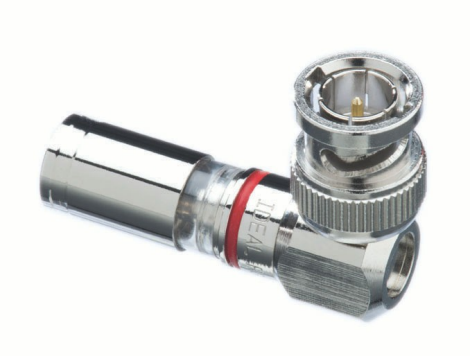

InSITE™ RG-59 90° BNC Compression Connector -5 pk

Installing one-piece compression BNC connectors has never been easier. Say goodbye to uncertainty and wasted connectors when inserting the cable. The patented InSITE™ 360° clear window, allows visual verification of full cable insertion to ensure mating with the fixed pin contact before compression. This eliminates the need for measuring, jacket marking, and guesswork, ensuring a confident connection every time. With InSITE, field termination is simpler and faster, delivering higher performance for all applications, from CCTV to HD Video.

• Features InSITE™ window - no measuring, no jacket marking, no guesswork – a confident connection every time
• 90° angle offers more flexible cable routing options
• Compatible with RG59 coax
• Center conductor range: 23-18 AWG Solid (.023” - .040”)
• Dielectric diameter range: .142” - .148”
• Outer jacket diameter range: .230” - .250”
• Gold plated centre pin
• Prep and strip cable with IDEAL® PrepPRO® coax/UTP cable stripper (45-605)
• Compress with IDEAL® OmniSeal™ PRO XL (30-793) or Linear X®3 (33-632)
• Pack of 15 connectors
